FGW PE-101
Quick Overview
he ultimate
Z-Wave power socket - control and monitor any appliance
wirelessly.
- Wireless Z-Wave On/Off control of any appliance
- Beautiful color LED ring tells you how much power is being used
- Monitor and analyze energy usage
- Integrated Z-Wave network range tester
- Available in Schuko and French/Belgium socket styles
- UK customers can select a FREE Schuko to UK adapter
The Fibaro Z-Wave Wall plug enables you to wirelessly control any appliance connected to it.
But that's only part of the story.
This ultimate wall plug also shows you how much power is being used, allows you to measure power consumption across days and weeks, and can test the range of your Z-Wave network.
Plug & Play
Simply plug the Fibaro Wall Plug into any electrical outlet, connect an appliance to it, then add it to you Z-Wave network by pressing the 'B' button socket. That's all it takes.

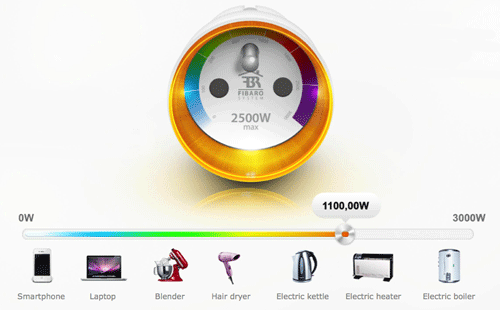

Power Management
The wall plug features a beautiful full color crystal LED ring that gives you a visual indication of how much power the appliance is using. The LED ring changes color depending on how much power is being consumed, starting with blue and moving through green, red and finally violet. It can even send an alarm if the power consumption goes above a preset limit.

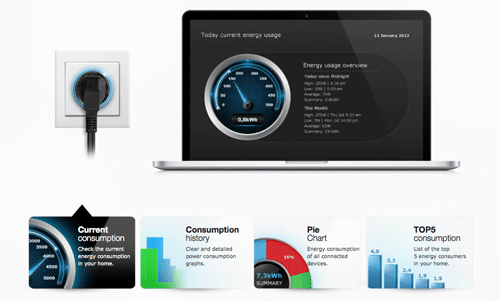

Energy Monitoring
The wall plug provides a real-time report of energy usage to your Z-Wave central controller. You can see how much power is being used and make decisions on how to save energy (and money), you can also look at historical information, display them in charts and look at your top-5 power hungry appliances.

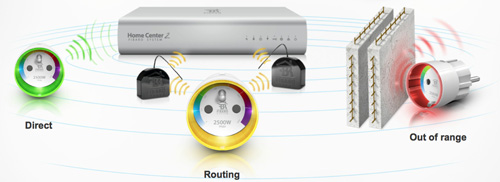

Z-Wave Network Range Tester
The FIBARO Wall Plug has a unique feature of being able to test the coverage of your Z-Wave network.
Simply press the button on the plug’s casing for a few seconds. The LED's purple light informs you that the plug is in testing mode, after a few seconds the LED will change color telling you the Z-Wave converge at that point in your network.
Availability
Currently the Fibaro Wall Plug is available in Schuko and French/Belgium socket styles. Until the UK version of the wall plug is available, all UK customers will receive a FREE Schuko to UK adapter enabling you to use it with UK style wall sockets.
- Technology: Z-Wave (868.42MHz)
- Maximum load: 2,500W
- Voltage: 230V, 50Hz
- Ring LED: 16 million colors indicating appliance's power consumption
- Energy Monitoring: current consumption (W) and accumulated consumption (kWh)
- Range Tester: Indicates strength, coverage and routing at any point in the Z-Wave network
- Overload Alert: Indicates power consumption higher than preset level
- Push-button: Include and Exclude from Z-Wave network
- Dimensions (diameter x length): 43 x 65mm
- Socket Versions: Schuko (type F) and French/Belgium (type E)
- UK Customers: Please select the Free UK adapter option in the selection box at the top of the page. This adapter will enable you to plug the product into a standard UK wall socket. You will also need a UK to Schuko (EU) adapter to connect your appliance - we don't supply this as almost everyone has one available.
Application Notes, Guides and Videos
- Adding the Fibaro Wall Plug
