FGRGB-101
Quick Overview
The ultimate
LED RGBW Controller and Dimmer.
- Wireless control of LEDs with an infinite range of color options
- Four Analog Sensor inputs
- Four Dimmer channels
- Monitor and analyze energy usage
The Fibaro Z-Wave RGBW Controller enables you to bring multi-color LEDs to life, allowing them you to have just the right light effect for your mood.
The Fibaro RGBW Controller is a unique, advanced wireless 4-colour LED strips controller. As well as supporting the traditional RGB channels, it also supports the additional white light channel - allowing an infinite variety of pastel colors. The controller also provides dimming control of four LED channels and can take input from up to four analog sensors.

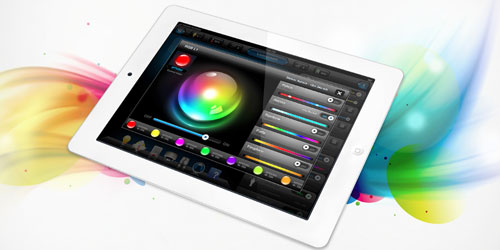

RGBW Control
The Fibaro RGBW Controller gives you an infinite choice of color possibilities from your LED lighting. Choose the color to match your mood, allowing you to chill out when you want to and focus when you need to. You can even have different colors to alert you to specific things.
Analog Sensors
The RGBW Controller supports up to four analog sensor inputs. This allows you to control your lighting or report information from a huge range of sensors - humidity, light, temperature, wind speed, rainfall, the is is endless.
4-Channel Dimmer (12/24V LEDs)
The Fibaro RGBW Controller is the only wireless dimmer that enables you to control four independent channels of 12/24V LED light sources without any modifications.

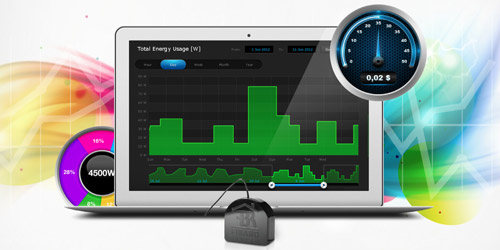

Live Power Monitoring
The RGBW Controller allows you to monitor the energy consumed by the LED strips. Each of the four channels can be monitored independently providing you with all the information you need to minimize your energy bills.
- Technology: Z-Wave (868.42MHz)
- Voltage: 12V or 24V DC
- Maximum Output
Current:
- 12A - sum of all output channels
- 6A - for a single channel
- Maximum Load:
- 144W (at 12VDC)
- 288W (at 24VDC)
- Load Type: 12/24V LED or Halogen bulbs
- Inputs: 4x (binary or 0-10V)
- Outputs 4x PWM
- Power Consumption: < 0.3W
- Range: up to 50m (outdoors) and 30m (indoors)
- Dimensions (LxWxH): 42 x 37 x 17mm
