Flood Sensor
FGFS-101
Quick Overview

The ultimate Z-Wave Flood, Temperature and Tilt sensor.
  • Detects water to alert for floods
  • Tilt and Temperature sensors
  • Integrated siren and RGB LED indicator
  • Battery-powered for up to 2.5 years



Product Details

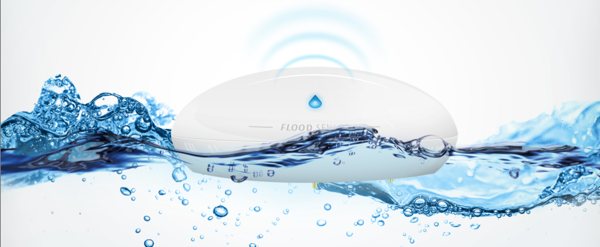

The Fibaro Z-Wave Flood Sensor enables you to detect water as well as movement (tilt) and changes in temperature.

The Fibaro Flood sensor features a range of sensor functions in a beautiful, futuristic, compact design. It will alert you of a threatening flood, or a rapid temperature change.

Fibaro Flood Sensor

Water Sensor

The sensor can immediately alert you if it detects water through its gold probes or from a wired remote probe,

Telescopic Probes

Unique highly-sensitive telescopic gold probes enable it to detect water even on uneven surfaces.

Tilt Sensor

Detects tilt and movement of more than 15 degrees. It also alerts you of any attempt to move or tamper with it.

Temperature Sensor

Integrated temperature sensor allows it to be used to manage in-floor heating systems or as a fire alarm sensor, by detecting rapid temperature rise.

Alarm Siren

Built-in alarm siren will help you react quickly in case of a flood, rapid temperature change, or tamper.

Tamper Prevention

Specially designed enclosure contains a tamper button, protecting it from being opened unintentionally.

Visual Indicator Light

As well as the alarm siren, it includes a RGB LED to alert you of a threat using different colour displays.

IN and OUT Connections

Input terminal allow the sensor to be connected to an external (remote) probe. Output terminals allow it to be connected to an alarm system.

Battery Powered

A single battery is enough to power the Sensor for up to 2.5 years.



Technical Details
  • Technology: Z-Wave (868.42MHz)
  • Power: CR123A Battery
  • External Power: 12-24 VDC
  • Output Terminal Voltage: 40V (AC or DC) max.
  • Output Terminal Current: 25mA max.
  • Measure Temperature: -20 to +100°C
  • Dimensions (diameter x height): 72 x 28mm
